2.1. Notation

Notations used in this paper are as follows: those denoted by subscripts or superscripts, such as $I$, $L$, $C$ respectively represent frames of IMU, LiDAR, and Camera. Moreover, a state of a robot is denoted by $x$. Additionally, measurements from sensors are represented by $z$. A difference between observed and predicted values is referred to as a residual, denoted as $r$. residuals for each sensor, LiDAR, Camera, and IMU, are expressed as $r_L$, $r_C$, $r_I$ respectively. Feature points obtained from a Camera or LiDAR are denoted as $p$, and if their motion is predicted or estimated, it is represented as $\hat{p}$. Also, a distance between points or between a point and an edge or a plane is denoted as $d$.Lastly, Extrinsic Parameters, composed of rotation and translation information, are represented by $T$.

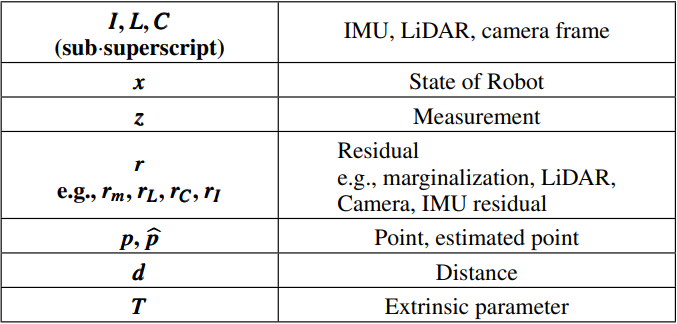

Table 2. Notation.

2.2. Maximum A Posteriori (MAP)

Before introducing Maximum A Posteriori (MAP), we would like to briefly discuss a state of a robot in this paper. The state of the robot refers to its position and related information, which can vary slightly depending on how researchers define it. For instance, it includes the robot's current position, rotation matrix, translation matrix, and velocity. While there are several methods for estimating such states in SLAM, one of them is MAP.

MAP is a Bayesian-based method that, given measured and predicted values, calculates a probability distribution of a position at a time of acquiring information. It provides a way to determine a probability distribution of a location when measurement and prediction values are available. MAP is a method designed to improve limitations of Maximum Likelihood Estimation (MLE). Likelihood is a probability of an outcome given certain data or models. On the other hand, Posterior is to find a probability that, given a particular result, which model among many data or models can cause this result. To illustrate with a cause-and-effect example, $x$ is a cause and $z$ is an effect, Likelihood is a probability of a result $z$ occurring when a cause $x$ has occurred. Posterior, on the other hand, seeks the probability of the cause $x$ occurring given that the result $z$ has occurred. The MAP method using Posterior takes into account the prior probability of the already known $x$, however the MLE method using Likelihood does not consider a prior probability of $x$. Therefore, MAP is considered to make more accurate judgments compared to MLE. In SLAM, $x$ represents a state of the robot, and $z$ becomes the observed sensor data.

During a state estimation process in MAP, the difference between the calculated and measured values obtained through sensors is computed. In this process, information from multiple sensors is collectively used. The formula for MAP can be expressed as follows:

where $z$ represents an observed value, $h(x)$ denotes a state function, and $\|\cdot\|$ indicates the Mahalanobis norm. Therefore, the estimated state is determined based on a difference between an observed value and a state function. This difference becomes a residual, denoted by $r$. And a goal is to find the state $x$ that minimizes this residual.

When employing the MAP method in SLAM, the residuals of each sensor are obtained and computed. Therefore, based on these, this paper aims to explain using the following formula, where $a$, $b$, and $c$ represent the types of sensors, which can vary depending on the number of sensors involved

While additional formulas or values may be introduced or omitted in this equation, this paper aims to proceed with explanations primarily based on Eq. (2).

2.3. Kalman Filter

The Kalman Filter is also a method used to estimate states. This approach involves predicting a state of a robot and calculating the error between a measured values obtained through sensors and the predicted values. In this process, information from multiple sensors can be fused and utilized. The Kalman Filter and MAP utilize the errors between predicted and measured values to estimate a current position of the robot. However, MAP calculates estimated values by maximizing the posterior probability and a result is a probability, while the Kalman filter does not directly calculate the probability, but it calculates the estimate through the mean and covariance of the state variables.

The Kalman Filter is a system that remove noise from uncertain observed values. When calculating a current state using the filter, the state is predicted using a previous motion state and motion input, and then updated with the estimated state obtained from sensor information. This process is repeated to determine the current state. State prediction involves predicting a distribution of the current state using probability distributions calculated from the previous measurement update and the motion input. Measurement update entails updating a posterior probability distribution using the predicted probability distribution of the current state and the probability distribution of the observed values measured at the current position. (refer to Fig. 1).

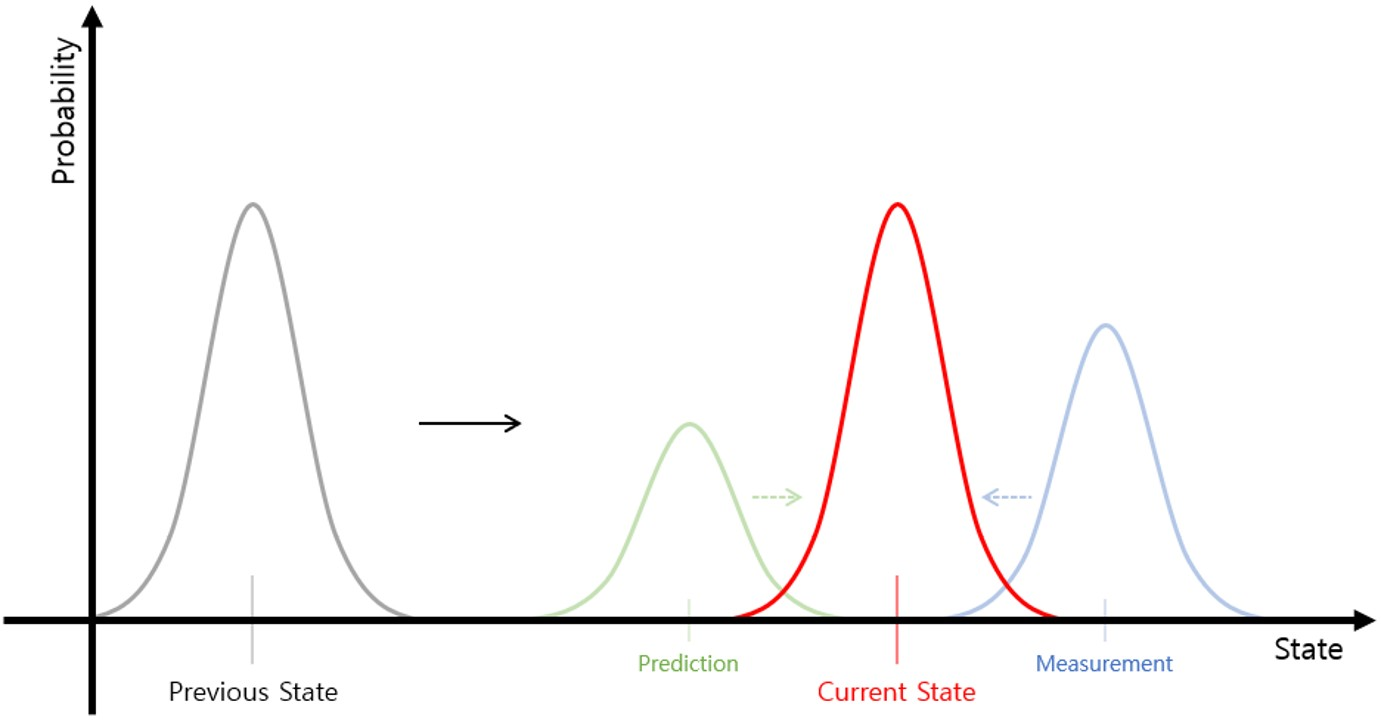

Fig. 1. Example of filter based SLAM.

There are primarily two types of Kalman Filters: the Linear Kalman Filter and the Extended Kalman Filter. The Linear Kalman Filter is a Bayesian filter for linear system models that follow Gaussian probability distributions. On the other hand, the Extended Kalman Filter addresses a limitation of the Linear Kalman Filter, which cannot be applied to nonlinear systems. It achieves this by extending the Linear Kalman filter using Jacobian matrices to handle nonlinear systems.

In this paper, we focus on the extended Kalman filter (EKF). A basic equation of the extended Kalman filter are as follows:

State Prediction is performed using Eqs. (3) and (4). Here, $f(x$, $\mu)$ represents the nonlinear motion model, and its Jacobian matrix is denoted by $J_f$. The covariance matrix for the state variables is $\overline{P}$, and $P$ represents the covariance matrix from the previous state. Additionally, $P_Q$ represents the covariance for robot motion.

Measurement Update is carried out through Eqs. (5)-(7). Eq. (5) represents the expression for the Kalman gain, where $J_h$ is the Jacobian matrix of the nonlinear observation model $h(x)$, and $P_R$ is the covariance of the observations. In Eq. (6), $z$ represents the measurement, and $(z-h(x))$ denotes the measurement residual. Eq. (6) updates the current state of the robot, while Eq. (7) computes the covariance for the current state.

Furthermore, definitions of (3-7) can vary depending on how it is defined, leading to different research outcomes.

3.1. Integrating Camera and IMU

Using a camera as a single sensor has advantages of being cost-effective and providing visual information. However, it is sensitive to factors such as light conditions and object textures, and it faces challenges with initialization. Therefore, to enhance position estimation accuracy, IMU sensors are often used in conjunction with cameras. Additionally, the information from these sensors is fused using the Maximum A Posteriori (MAP) method, with the basic equation represented by Eq. (2).

Among the studies that utilize both camera and IMU, some examples include VINS-Mono ^[2], VIO-DualProNet ^[3], OpenVINS ^[5], OV Plane ^[8], PL-VINS ^[20], and PLE-SLAM ^[21]. In this context, the primary focus will be on discussing VINS-Mono and OV Plane. VINS-Mono and VIO-DualProNet employ similar forms of MAP equations. The MAP method is used to fuse sensor information utilizing the camera's residual ${{r}}_{{C}}$ with Huber norm ${\rho }({s})$, IMU's residual ${{r}}_{{I}}$, and marginalization ${{r}}_{{m}}$ to estimate the current state. The equation for this is Eq. (8).

where compared to Eq. (2), differences are that the Huber norm is used in front of the camera residual and marginalization is used, not a value obtained directly from sensors.

OV Plane ^[8] was developed on top of Open VINS ^[5]. In this research, sensor information is fused without using MAP. They identify planes and distinguish between standard extended Kalman filter (EKF) and multi-state constraint Kalman filter (MSCKF) depending on specific situations. During a process of obtaining these planes, plane features ${x}_{\pi}$, IMU information states ${x}_{I}$, historical IMU poses ${x}_{H}$, and 3D point features from LiDAR ${x}_{f}$ are combined into a state ${x}$ and applied to the Kalman filter. For details, refer to Eq. (10).

In this equation, ${x}$ represents a state in equations (3-7) for the Kalman Filter, and by defining the state as in Eq. (10), information of sensors is fused.

3.2. Integrating LiDAR and IMU

When using LiDAR, a laser directly contacts objects, providing highly accurate and reliable information. However, it has limitations in terms of range and may be challenging to use in open areas. Additionally, pose estimation can be more challenging compared to cameras, as distortions may occur while moving. To address these challenges, IMU sensors are often used alongside LiDAR to improve pose estimation.

Among the many studies in this category, I will describe CLINS ^[6], LIO-Mapping ^[7], LIPS ^[9], IN2LAMA ^[4], and FAST-LIO ^[10]. CLINS utilizes a residual of LiDAR ${{r}}_{{L}}{(}{x}{)}$ along with residuals ${{r}}_{{a}}({x})$ and ${{r}}_{{w}}{(}{x}{)}$ obtained from the acceleration and angular velocity from the IMU.

Unlike in Eq. (2), where the information from the IMU is computed into a single residual, here the residuals of the IMU's acceleration and velocity information are specifically utilized.

In LIO-Mapping, marginalization information, along with residuals from a IMU and LiDAR, are summed individually. Then, unlike Eq. (2) or Eq. (8), it is divided 2.

Next, we would like to examine research that utilizes only maximum likelihood estimation (MLE) instead of maximum A posteriori (MAP). LIPS is research that utilizes MLE to fuse information, incorporating plane information in the process. In LIPS, points are obtained from LiDAR, and planes are constructed using points. Subsequently, predictions are made on how these planes moved between frames, and a difference between a measured position of the plane and a predicted position at the same time is calculated as the residual ${{r}}_{{{\pi}}}({x})$. Additionally, in this research, residuals are calculated by MLE.

IN2LAMA minimizes a geometric distance ${{d}}_{{L}}$ (Point-to-Line or Point-to-Plane) associated with LiDAR features, along with the time-shift residual ${{r}}_{{t}}$, residual of accelerometer biases ${{r}}_{{{b}}_{{a}}}$from IMU, and residual of gyroscope biases ${{r}}_{{{b}}_{{\omega }}}$.

where unlike previous equations, this computes the residual of time-shift and utilizes geometric distance.

In LiDAR-IMU SLAM, there are studies that utilize Kalman Filter to estimate and optimize positions. FAST-LIO is one example of such research. In FAST-LIO, the scan-end projected point ${{p}}^{{{L}}_{{k}}}_{{{f}}_{{j}}}$ is obtained using LiDAR's extrinsic parameters ${{T}}^{{I}}_{{L}}$ and IMU's extrinsic parameters ${{T}}^{{{I}}_{{k}}}_{{{I}}_{{j}}}$, along with local measurement points from LiDAR ${{p}}^{{{L}}_{{j}}}_{{{f}}_{{j}}}$ in the IMU frame.

Furthermore, an estimated feature point in a global frame ${\widehat{{p}}}^{{\kappa }}_{{{f}}_{{j}}}$ is obtained using this projected point ${{p}}^{{{L}}_{{k}}}_{{{f}}_{{j}}}$, LiDAR's extrinsic parameter ${{T}}^{{I}}_{{L}}$, and a calculated IMU extrinsic parameter in a global frame ${\widehat{{T}}}^{{\kappa }}_{{{I}}_{{k}}}$. Subsequently, this point is used in the Kalman Filter and MAP to compute residual.

In MAP, this residual is used to obtain the ${\kappa }$-th update of ${x}$ in the iterated Kalman Filter, while in the Kalman Filter, it is used to obtain ${\kappa }{+1}$-th update of ${x}$.

Besides these, there are instances where new sensors are incorporated, and the information from these various sensors is fused to estimate the state. For example, there are researches such as LIO-SAM ^[11] and LIRO ^[12].

LIO-SAM incorporates GPS as an additional sensor. Similar to how LiDAR and IMU are used in LOAM ^[13], LIO-SAM utilizes LiDAR and IMU while adding GPS to estimate a robot's state. Another one is LIRO. it incorporates UWB anchors as an additional sensor. This study calculates residuals from LiDAR, IMU, and UWB anchors ${r}_{L}$, ${r}_{I}$, and ${r}_{U}$ similar to other studies, to estimate the robot's position (Eq. (17)). And, it uses cost function.

3.3. Integrating LiDAR, Camera, and IMU

Using LiDAR with IMU, as well as Camera with IMU, can complement shortcomings of each sensor and lead to better results compared to using a single sensor alone. However, there may still be some shortcomings even with this approach. Therefore, there are SLAM systems that combine LiDAR, Camera, and IMU to address these shortcomings and achieve better results.

The researches to be introduced this time are LE-VINS ^[14], R${}^{2}$LIVE ^[15], LVIO-Fusion ^[18], and LIC-Fusion ^[19]. First, LE-VINS utilizes marginalization like Eq. (8). However, it uses a residual of LiDAR ${{r}}_{{L}}({x})$.

R${}^{2}$LIVE constructs its state using a prior distribution ${{r}}_{{m}}$, an observation matrix ${{H}}$ composed of Jacobians, an error ${{\delta}}{{x}}$ between estimated and measured states, and residuals from each sensor (Eq. (19)).

LVIO-Fusion employs a formulation where square of residuals $\|r_I\|^2$, $\|r_C\|^2$, $\|r_L\|^2$ is multiplied by respective weights ${\omega }_I$, ${\omega }_C$, ${\omega }_L$. This utilizes LiDAR, Camera, and IMU. Furthermore, it calculates a Huber norm of residuals for Camera and LiDAR (Eq. (20)).

In LiDAR-Camera-IMU SLAM, there are researches that utilize Kalman Filter to fuse sensor information. Among them, LIC-Fusion ^[19] defines a state ${x}$ as a fusion of IMU state ${{x}}^{{T}}_{{I}}$, extrinsics between IMU and camera ${{x}}^{{T}}_{{calib}{\_}{C}}$, extrinsics between IMU and LiDAR ${{x}}^{{T}}_{{calib}{\_}{L}}$, IMU information at specific image times${\ }{{x}}^{{T}}_{{C}}$, and IMU information at specific LiDAR times ${{x}}^{{T}}_{{L}}$.

3.4. SLAM Utilizing Marginalization or Plane Extraction

In addition to using sensor information directly within MAP, MLE, and Kalman Filter, there are methods that involve post-processing the sensor data before estimating the state. Among these methods, we aim to explore the cases where Marginalization or Plane Extraction methods are employed. These methods are not significantly influenced by the type of sensors used.

Marginalization is employed to reduce a computational complexity of an odometry system and improve odometry performance. It is a technique commonly used in sliding-window approaches, where if a second most recent frame in a window is a keyframe, an oldest keyframe is removed, or if it is not a keyframe, the frame is removed. In Fig. 2 (a), if ${\pmb{x}}_{\pmb{4}}$ is a keyframe, ${\pmb{x}}_0$ is removed (Fig. 2 (b)). If it is not a keyframe, ${\pmb{x}}_{\pmb{4}}$ is removed (Fig. 2 (c)).

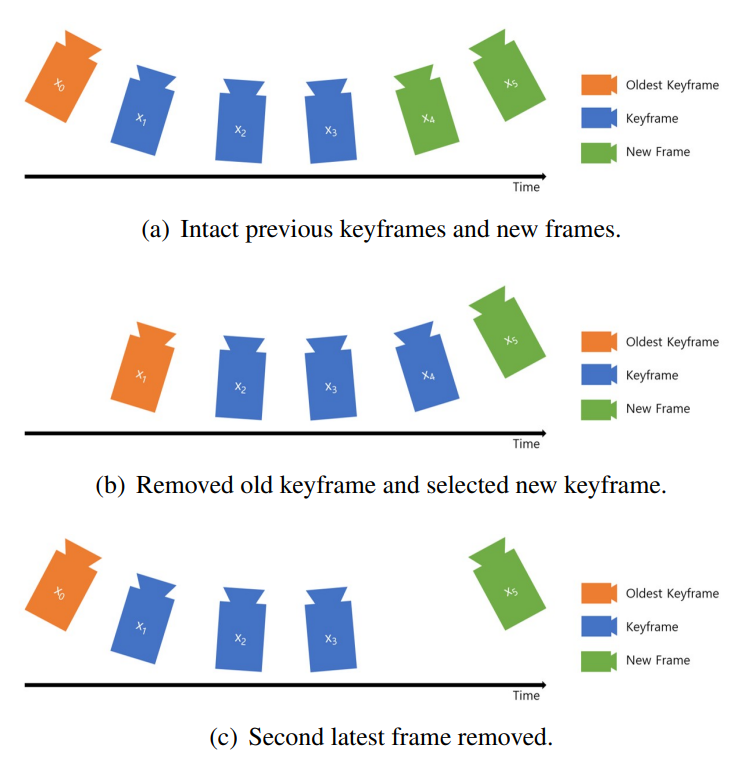

Fig. 2. Example of marginalization.

Examples of such researches include VINS-Mono ^[2], LIO-Mapping ^[7], LVIO-Fusion ^[18], R${}^{2}$LIVE ^[15], FAST-LIVO ^[16]. Each corresponds to Eqs. (8), (12), (20), and (19), respectively, excluding FAST-LIVO, all of which include the marginalization residual ${{r}}_{{m}}$.

Next, we would like to explore research on estimating states by reconstructing planes. These planes are then integrated with information from other sensors into a state vector ${x}$ for further use. If researches involve detecting planes, as shown in Fig. 3, it identifies planar regions and observes the movement of these planes. The reason for estimating planes is that planes are abundant in a real world and are wide in area, making them suitable as landmarks or references. For further details, refer to ^[8].

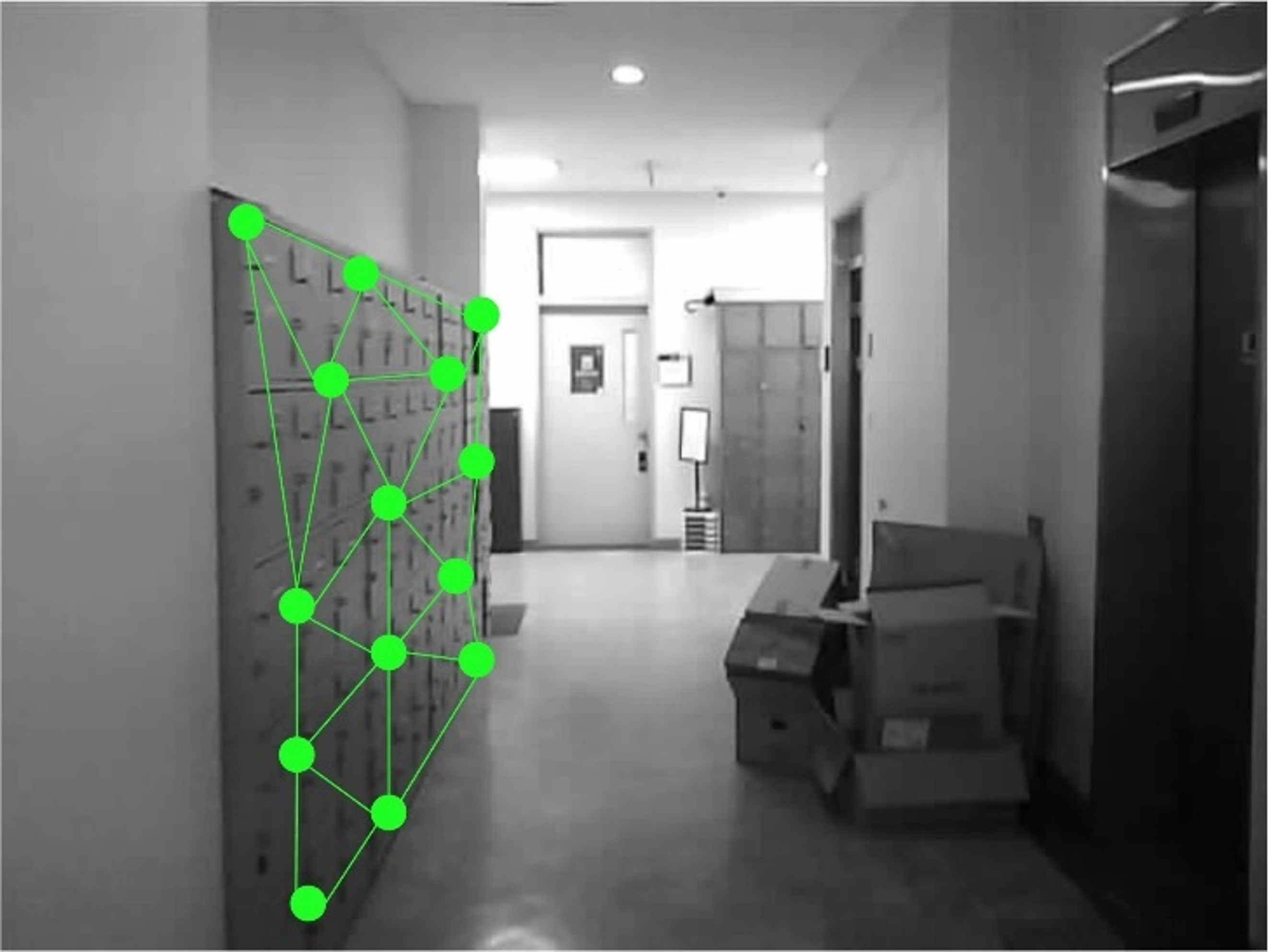

Fig. 3. Example of using a plane.

Among these researches are OV Plane ^[8], LIPS ^[9], LVI-Sam ^[17], where the equations for OV Plane and LIPS are Eqs. (10) and (13), respectively. In LVI-SAM, Visual-Inertial Odometry and LiDAR-Inertial Odometry are mixed together. In this case, an IMU not only provides biases but also inertial measurements. Additionally, visual features and LiDAR features are used together for plane extraction and depth registration, and this information is then utilized in Visual-Inertial Odometry.

Additionally, besides the methods introduced this paper, there are various other approaches. Among them, methods utilizing points and lines, such as PL-VINS ^[20] or PLE- SLAM ^[21]. This method is not introduced because it introduced the method utilizing planes.
