1. Introduction
Algal bloom is one of the important issues in the management of drinking water supply
systems. The overgrowth of algae has various harmful effects on water quality such
as unfavorable odor or taste (Codd et al., 2005; Paerl and Otten, 2013; WHO, 2004). The cell walls of diatoms are not removed by the regular disinfection process and
often cause technical problems such as clogging of filtration beds in water treatment
plants. Cyanobacteria release algal toxins in freshwater systems, which cause direct
damage to human health.
Thus, continuous monitoring of algae in freshwater such as rivers and reservoirs is
essential. One of the most common and traditional monitoring methods is the visual
identification of algae using a microscope. However, this is laborious and time-consuming.
Thus, the development of a rapid and less labor-intensive method for algae image identification
is required.
Object detection is a fundamental subject and is continuously studied in computer
vision research (Zhao et al., 2019). Object detection technology based on deep learning algorithms has made noticeable
accomplishments in recent decades. The convolutional neural network (CNN) is the most
representative and widely used deep learning algorithm in object detection studies
(LeCun et al., 2015; Zhao et al., 2019). The characteristics of the target image are extracted by computation processes
called convolution and pooling and used for the classification of the target object.
AlexNet, a deep learning algorithm based on the convolutional neural network, was
a winner in the 2012 image net large scale visual recognition challenge (ILSVRC) and
is considered one of the algorithms that shows the practical applicability of deep
learning in object detection (Krizhevsky et al., 2012; Russakovsky et al., 2015). Since AlexNet, various algorithms have been developed, and these models can be
categorized into two types (i.e., one-stage model and two-stage model)(Sultana et al., 2020; Zhao et al., 2019).
Regions with convolutional neural network (R-CNN) is one of the first two-stage object
detection models developed. In the first stage of R-CNN, the algorithm proposes multiple
possible regions where a target object can be located. In the second stage, the model
finds the location of the target object and classifies it using the CNN algorithm
(Girshick et al., 2014; Zhao et al., 2019). Various two-stage object detection algorithms that have improved on R-CNN have
been developed, such as spatial pyramid pooling (SPP), Fast R-CNN, Faster R-CNN, and
Mask R-CNN(Girshick, 2015; He et al., 2017; He et al., 2015; Ren et al., 2015).
YOLO is considered one of the most representative one-stage object detection models
where the region proposal and classification are unified and processed in a single
stage (Redmon et al., 2016; Sultana et al., 2020). There are also various one-stage object detection models such as single shot multibox
detector (SSD) and Retina-Net (Lin et al., 2017; Liu et al., 2016). The YOLO model was continuously improved from version 1 to version 3, and Redmon and Farhadi (2018) proposed a third version of the YOLO model(YOLOv3). The inference time of YOLOv3
for object detection process ranges from 22 to 51 milliseconds depending on the resolution
of input images, which is a much faster inference time than other models such as SSD
and RetinaNet (Redmon and Farhadi, 2018). Although YOLOv3 has slightly less accuracy than these two models, the noticeably
faster inference time can be considered one important advantage of the YOLO model
as a real-time object detection model (Redmon and Farhadi, 2018). Object detection model development is a competitive field and there are still various
ongoing issues. Thus, it is the researcher’s choice to select an optimal model for
their research field.
Recently, several studies present the practical possibility of using deep learning
models such as YOLO for algae image detection (Pedraza et al., 2018; Salido et al., 2020). Pedraza et al. (2018) used the YOLO model for the classification of diatoms, and it classified objects
of nine diatom species in images with overall precision and recall of 0.74. More recently,
Salido et al. (2020) used YOLO to classify 10 diatom species with mean precision of 0.727. The composition
of the input image data set such as the number of target objects and use of colors
affect the object model performance while related research in algal image detection
is still in an early stage.
In this study, a deep learning object detection algorithm, YOLOv3, was used for the
detection and classification of algae images obtained from freshwater. The model was
trained and tested for the classification of five, 10, 20, and 30 target species so
that the effect of the number of target objects on model performance could be analyzed
and the practical applicability of the model verified, where the effect of color of
the images on model performance was also compared using the same data groups with
grayscale photos.
2. Materials and Methods
2.1 Data sources
2.1.1 Image acquisition
A total of 1,114 photos with 3,663 objects for 30 genera were used to develop the
YOLOv3 algae image detection model (Table 1). The photos were collected by microscope (Eclipse Ni, NIKON, Japan) from algae cultivated
in pure cultures.
Table 1. Algae images used for YOLOv3 model development
|
Genus |
Number of genera included in a group |
Number of photos |
Number of labeled images |
|
5 |
10 |
20 |
30 |
|
Acutodesmus obliquus |
O
|
O
|
O
|
O
|
11
|
75
|
|
Ankistrodesmus falcatus |
X
|
O
|
O
|
O
|
20
|
32
|
|
Chlamydomonas asymmetrica |
X
|
X
|
X
|
O
|
65
|
393
|
|
Chlorella vulgaris |
O
|
O
|
O
|
O
|
82
|
712
|
|
Chlorococcum loculatum |
X
|
X
|
O
|
O
|
27
|
88
|
|
Chroomonas coerulea |
X
|
X
|
O
|
O
|
90
|
559
|
|
Closterium sp.
|
X
|
O
|
O
|
O
|
65
|
129
|
|
Coelastrella sp.
|
X
|
X
|
X
|
O
|
10
|
19
|
|
Coelastrum astroideum var. rugosum |
X
|
X
|
X
|
O
|
12
|
37
|
|
Cosmarium sp.
|
X
|
O
|
O
|
O
|
35
|
154
|
|
Cryptomonas lundii |
X
|
X
|
O
|
O
|
37
|
36
|
|
Desmodesmus communis |
O
|
O
|
O
|
O
|
183
|
314
|
|
Diplosphaera chodatii |
X
|
O
|
O
|
O
|
3
|
38
|
|
Eudorina unicocca |
X
|
X
|
X
|
O
|
40
|
205
|
|
Euglena sp.
|
X
|
X
|
O
|
O
|
58
|
76
|
|
Kirchneriella aperta |
X
|
X
|
O
|
O
|
24
|
81
|
|
Lithotrichon pulchrum |
X
|
X
|
X
|
O
|
11
|
55
|
|
Micractinium pusillum |
X
|
X
|
O
|
O
|
18
|
74
|
|
Micrasterias sp.
|
O
|
O
|
O
|
O
|
8
|
8
|
|
Monoraphidium sp.
|
X
|
X
|
O
|
O
|
34
|
66
|
|
Mychonastes sp.
|
X
|
X
|
X
|
O
|
32
|
133
|
|
Nephrochlamys subsolitaria |
X
|
X
|
O
|
O
|
9
|
31
|
|
Pectinodesmus pectinatus |
X
|
X
|
O
|
O
|
68
|
69
|
|
Pediastrum duplex |
X
|
X
|
X
|
O
|
75
|
77
|
|
Pseudopediastrum boryanum |
X
|
X
|
X
|
O
|
28
|
29
|
|
Scenedesmus sp.
|
X
|
X
|
O
|
O
|
9
|
13
|
|
Selenastrum capricornutum |
O
|
O
|
O
|
O
|
12
|
43
|
|
Sorastrum pediastriforme |
X
|
O
|
O
|
O
|
9
|
9
|
|
Tetrabaena socialis |
X
|
X
|
X
|
O
|
34
|
81
|
|
Tupiella speciosa |
X
|
X
|
X
|
O
|
5
|
27
|
|
Sum
|
5
|
10
|
20
|
30
|
1,114
|
3,663
|
2.1.2 Input image data set and labelling
The algae images were divided into four groups with five, 10, 20, and 30 genera (Table
1) to compare the model’s performance with various numbers of target objects for classification.
The color of the images can affect model performance, especially as the number of
target genera increases. Thus, each data group was also prepared with grayscale photos
to test the model’s sensitivity to the colors of the algae images. Thus, the YOLOv3
model was trained with eight different data sets. The ratio of data used for model
training and testing is 7:3.
Each photo contains more than one cell image object, and each algal cell image object
was labeled manually for training and testing the YOLOv3 model using a labeling program
developed in this study (Table 1). For example, there were 11 photos of Acutodesmus obliquus where each photo contained from one to several cell image objects. Thus, a total
of 75 Acutodesmus obliquus objects were labelled. The label includes the coordinates of the bounding box and
class of the target object so that the model identifies the location and class of
each cell object during the training process (Fig. 1).
Fig. 1. Example of algae cell image labelling.
2.2. Model development
2.2.1 YOLOv3 model
YOLOv3 predicts the location and class of objects in a single neural network process
where a convolutional neural network with 53-layer, Darknet-53 is used as the main
model network (Redmon and Farhadi, 2018). YOLOv3 has been continuously improved from YOLOv1 and YOLOv2 (Redmon et al., 2016; Redmon and Farhadi, 2017, 2018).
YOLOv1, the first version of the YOLO model, divides the input image into an S×S grid
where S=7 is used to evaluate the model (Redmon et al., 2016). Each grid cell predicts B (assigned as 2) bounding boxes for object detection and
the confidence score is calculated for each bounding box.
The confidence score is defined as P×IOU, where P is the probability that the bounding
box contains an object and IOU is intersection over union (Redmon et al., 2016). IOU is calculated with the following equation (Eq. 1), as illustrated in Fig. 2.

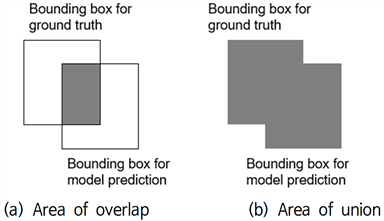

Fig. 2. Schematic of area of overlap and area of union for IOU calculation.
Each bounding box contains five values. These values are coordinates (x, y) that represent
the center of the box relative to the bounds of the grid, the width (w) and height
(h) of the box, and the confidence score (Redmon et al., 2016). Thus, each grid prediction consists of S×S×(B×5+C) tensor where C is the number
of object classes trained. YOLOv1 is evaluated with S=7, B=2, and C=20 using the PASCAL
VOC data set (Redmon et al., 2016). The bounding box with the highest IOU with ground truth is assigned as responsible
for predicting an object. YOLOv2 is improved from YOLOv1. YOLOv2 uses a convolutional
neural network with 19 layers, called Darknet-19, and anchor boxes to predict bounding
boxes.
YOLOv3 has several important improvements from the previous version of YOLO models.
First, YOLOv3 uses Darknet-53 as the main model network. YOLOv3 also extracts three
different scales of images, called a feature map. The size of each feature map is
13×13, 26×26 and 52×52 (Redmon and Farhadi, 2018; Zhao and Ren, 2019).
Each grid cell has three anchor boxes with different shape scores. A model structure
diagram of Darknet-53 and YOLOv3 can be found in previous studies (Pedraza et al., 2018; Tian et al., 2019; Zhao and Ren, 2019), and a simple schematic is shown in this study (Fig. 3). The attributes of each anchor box are the location of object, objectness score
and class (Fig. 4)(Redmon and Farhadi 2018). The objectness score is also predicted for each bounding, which represents the probability
of whether the target in the bounding box is an object. Each bounding box also predicts
the classes of the target object contained in the bounding box using logistic classifiers
so that multilabel classification is possible (Redmon and Farhadi, 2018).
Fig. 3. Schematic of YOLOv3 structure.
Fig. 4. Attributes of a bounding box. n is the number of classes for prediction.
2.2.2 Model training and optimization
The eight input data sets were trained by YOLOv3 coded by C++ language. The model
frame was programed by C# language using OpenCV 4.4 and NVDIA GPU Toolkit 11. The
model was trained by Darknet YOLO (https://github.com/ AlexeyAB/darknet) where pre-trained
Darknet53.conv.74 was used. The hyperparameters were used with default values of the
YOLOv3 model with batch size 64, learning rate 0.001, and max_batch the number of
class×2000. The best model was determined by comparing model performance for every
100 batches.
2.3. Model evaluation
2.3.1. Precision and mean average precision
For object detection, the model prediction can be divided into four indicators as
follows.
⋅True positive(TP): the number of observed positive values that were correctly predicted,
⋅False positive(FP): the number of observed positive values that were wrongly predicted,
⋅False negative(FN): the number of observed negative values that were wrongly predicted,
⋅True negative(TN): the number of observed negative values that were correctly predicted.
The model performance can be evaluated by precision(PR) and recall(RE) defined by
the four indicators(Eq. 2-3).
The Precision-Recall curve (P-R curve) represents the change of PR through the change
of recall over an interval from 0 to 1, which is commonly used to consider both PR
and recall for object detection model evaluation (Ozenne et al., 2015; Tian et al., 2019).
The average precision (AP) is calculated from the sum of the area under the P-R curve
for each class of image, representing the average of precision through the overall
interval of recall. The mean average precision (mAP) is the average of AP for all
image classes. Redmon and Farhadi (2018) verified that YOLOv3 performs well with an IOU of 50%, and Zhao and Ren (2019) also noted that the YOLOv3 model performs strongly with an IOU of 50%. In this study,
the model performance was evaluated by PR and mAP using an IOU of 50%.
3. Results and discussion
3.1 Model performance comparison

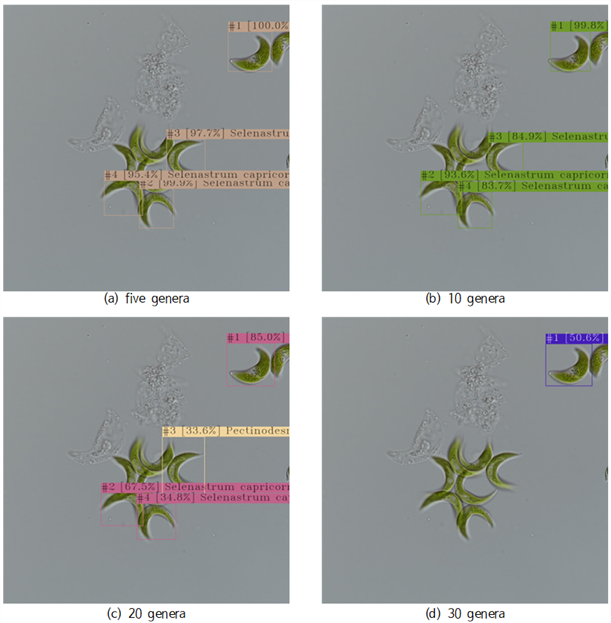

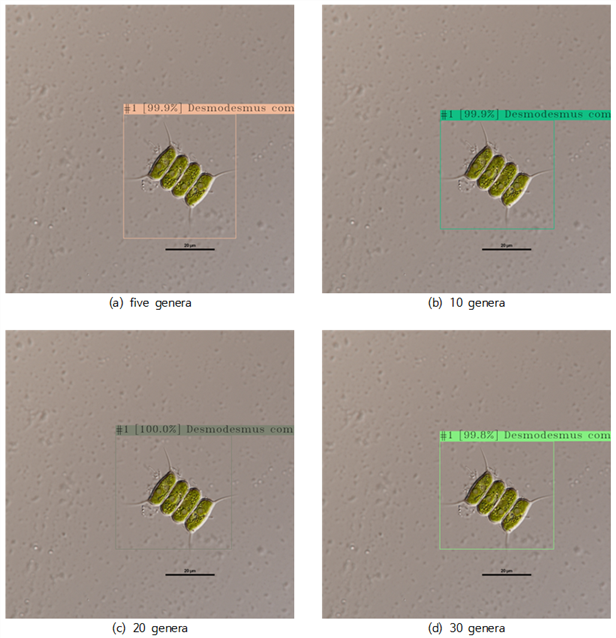

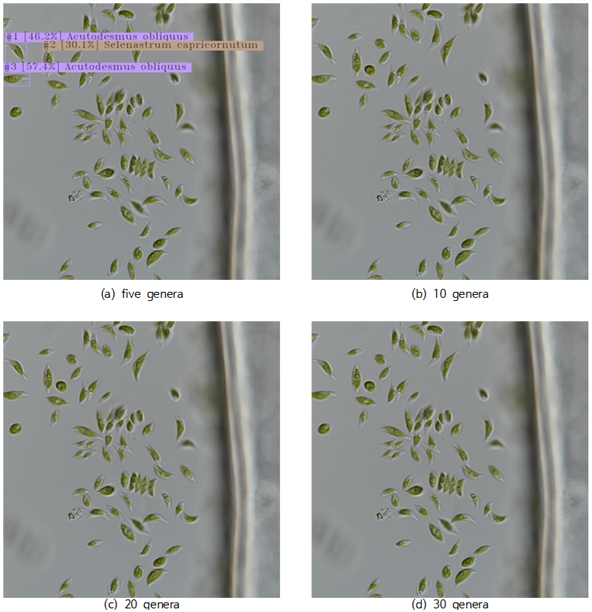

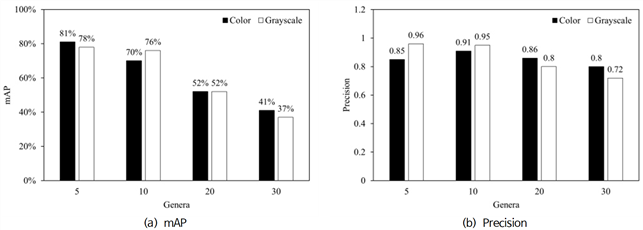

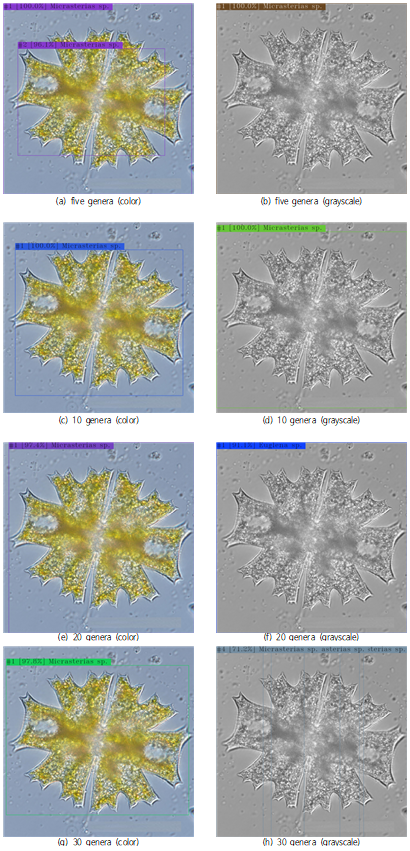

The model performance for eight data sets was compared in Fig. 5. The model shows better mAP for data sets with a small number of genera, both for
color and grayscale image. The mAP was 81, 70, 52, and 41 for data sets with five,
10, 20, and 30 genera, respectively. PR was higher than 0.8 for all data sets with
color images, and the highest PR was observed for the data set with 10 genera. The
model using grayscale images had about 11% and 4% higher PR for data sets with five
and 10 genera, respectively, while it had about 6% and 8% lower PR for data sets with
20 and 30 genera.
Fig. 5. mAP and PR of YOLOv3 model for test data set.
The model shows better performance for data sets with a small number of genera when
using grayscale images. On the other hand, higher PR was observed when using color
images for data sets with a larger number of genera. These results suggest that color
images provide more useful information for object detection and improve model PR when
a relatively larger number of genera is classified.
3.2 Detection characteristics
A detailed analysis of model prediction results, including misclassified cases, provides
useful information to understand and improve model performance. The model developed
in this study shows good performance for a single cell image. For photo images with
a single algae cell, the model predicted the algae image with more than 95% confidence
for all four data sets of five, 10, 20, and 30 genera with color images (Fig. 6). However, the model misclassified overlapped images and those with similar morphology.
Small and crowded images are also often misclassified. The misclassified cases can
be summarized as follows.
Fig. 6. Detection confidence ofDesmodesmus communisfor five, 10, 20 and 30 genera data sets.
Case 1. Misclassification of overlapped image
The model misclassified overlapped images as the number of classes increased. For
data sets with five genera, the model detected the image with more than 90% confidence
(Fig. 7). However, the confidence decreased to 73% for 20 genera, and the model could not
detect images for 30 genera.
Fig. 7. Detection ofSelenastrum capricornutumfor five, 10, 20 and 30 genera models.
Case 2. Misclassification of morphologically similar image
The model tended to misclassified or could not detect algae with similar images. For
example, Selenastrum capricornutum and Pectinodesmus pectinatus have similar morphology, and the model could not detect either one (Fig. 8).

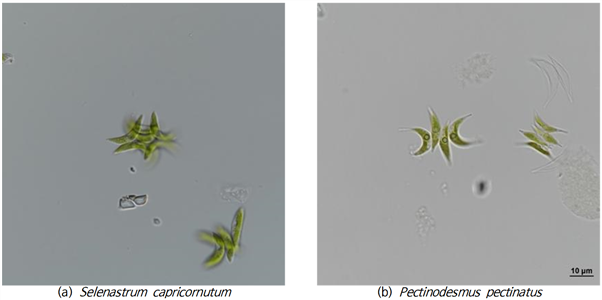

Fig. 8. Detection ofSelenastrum capricornutumandPectinodesmus pectinatusfor 20 genera models.
Case 3. Misclassification of small and crowed image
The model misclassified or could not detect small and crowded images, even for five
genera, which is considered a limitation of the current model (Fig. 9).
Fig. 9. Detection ofAcutodesmus obliquusfor five, 10, 20 and 30 genera models.
An example of detailed model performance in Case 1 and Case 3 are summarized in Table
2. The number of correctly detected objects and model accuracy decrease as the number
of target genera increases in both cases.
Table 2. Accuracy of five, 10, 20 and 30 genera model for misclassification case
|
Genera |
five |
10 |
20 |
30 |
Reference figure |
|
Case 1. overlapped image
|
Number of correctly detected object/Number of object
|
4/9
|
4/9
|
3/9
|
1/9
|
Fig. 6 |
|
Accuracy
|
95.4~100%
|
84.9~99.8%
|
34.8~85.0%
|
50.6%
|
|
Case 3. small and crowed image
|
Number of correctly detected object/Number of object
|
2/74
|
0/74
|
0/74
|
0/74
|
Fig. 8 |
|
Accuracy
|
46.2~57.4%
|
-
|
-
|
-
|
The effect of color images on model performance was also analyzed by comparing the
model simulation results with grayscale images. No noticeable difference was observed
between color and grayscale images with five and 10 genera data sets (Fig. 10). However, detection performance varied between color and grayscale images with 20
and 30 genera. Color image data sets tend to show better performance as the number
of genera increases. This suggests that morphological characteristics may be enough
to detect algae objects with a small number of classes, but more various information
from color images is helpful for object detection as the number of classes increases.
Fig. 10. Detection confidence ofMicrasteriassp. with color and grayscale images.
4. Conclusion
In this study, an algae image detection model using YOLOv3 was developed. The model
was trained by four data sets with five, 10, 20 and 30 genera. The effect of image
color on model performance was also compared by training the model with grayscale
images of the four data sets.
The PR of the model was more than 0.8 for all four data sets, where the mAP ranged
from 41 to 81. The results suggest the practical applicability of the algae detection
YOLOv3 model. The model trained by grayscale image shows similar performance for five
and 10 genera data sets. On the other hand, models trained by color images show better
performance as the number of classes increases, which indicates that more information
from color images is required for proper object detection as the number of classes
increases.
The analysis of misclassified cases suggests that model accuracy especially decreases
when there are morphologically similar algae cells. Model performance also decreased
for small or crowded images.
Deep learning models are limited in directly adapting the training process of the
model based on existing physical, chemical and biological causality, which is an important
characteristic of the black box model. Despite this limitation, advanced deep learning
models are already actively applied in various fields and real life and show sufficient
performance. Deep learning models are influenced by the composition of the input data,
and the performance of the model can be improved through the proper organization of
the input data that can reflect various characteristics of the target object. The
model developed in this study shows the possibility of using a deep learning model,
YOLOv3, for algae image detection. The results provide valuable practical technology
for the monitoring and management of algal blooms in rivers and reservoirs. Further
analysis of the results, including misclassification, suggests that increased input
data with various characteristics, including small and crowded images, would improve
model performance and is suggested as a subject of future study.
Acknowledgement
This work was supported by Korea Environment Industry &Technology Institute (KEITI)
through Aquatic Ecosystem Conservation Research Program, funded by Korea Ministry
of Environment (MOE) (2020003030006) and the Nakdonggang National Institute of Biological
Resources (NNIBR), funded by the Ministry of Environment (MOE) of the Republic of
Korea (NNIBR202101103).
References
Codd G. A., Morrison L. F., Metcalf J. S., 2005, Cyanobacterial toxins: risk management
for health protection, Toxicology and Applied Pharmacology, Vol. 203, pp. 264-272
Girshick R., 2015, Fast r-cnn, Proceedings of the IEEE International Conference on
Computer Vision, pp. 1440-1448
Girshick R., Donahue J., Darrell T., Malik J., 2014, Rich feature hierarchies for
accurate object detection and semantic segmentation, Proceedings of the IEEE Conference
on Computer Vision and Pattern Recognition, pp. 580-587
He K., Gkioxari G., Dollár P., Girshick R., 2017, Mask r-cnn, Proceedings of the IEEE
International Conference on Computer Vision, pp. 2961-2969
He K., Zhang X., Ren S., Sun J., 2015, Spatial pyramid pooling in deep convolutional
networks for visual recognition, IEEE Transactions on Pattern Analysis and Machine
Intelligence, Vol. 37, pp. 1904-1916
Krizhevsky A., Sutskever I., Hinton G. E., 2012, Imagenet classification with deep
convolutional neural networks, Advances in Neural Information Processing Systems,
Vol. 25, pp. 1097-1105
LeCun Y., Bengio Y., Hinton G., 2015, Deep learning, Nature, Vol. 521, pp. 436-444
Lin T. Y., Goyal P., Girshick R., He K., Dollár P., 2017, Focal loss for dense object
detection, Proceedings of the IEEE International Conference on Computer Vision, pp.
2980-2988
Liu W., Anguelov D., Erhan D., Szegedy C., Reed S., Fu C. Y., Berg A. C., 2016, SSD:
Single shot multibox detector, Proceedings of European Conference on Computer Vision,
pp. 21-37
Ozenne B., Subtil F., Maucort-Boulch D., 2015, The precision–recall curve overcame
the optimism of the receiver operating characteristic curve in rare diseases, Journal
of Clinical Epidemiology, Vol. 68, pp. 855-859
Paerl H. W., Otten T. G., 2013, Harmful cyanobacterial blooms: causes, consequences,
and controls, Microbial Ecology, Vol. 65, pp. 995-1010
Pedraza A., Bueno G., Deniz O., Ruiz-Santaquiteria J., Sanchez C., Blanco S., Borrego-Ramos
M., Olenici A., Cristobal G., 2018, Lights and pitfalls of convolutional neural networks
for diatom identification, Proceedings of Optics, Photonics, and Digital Technologies
for Imaging Applications V, 106790G
Redmon J., Farhadi A., 2017, YOLO9000: Better, faster, stronger, Proceedings of the
IEEE Conference on Computer Vision and Pattern Recognition, pp. 7263-7271
Redmon J., Farhadi A., 2018, Yolov3: An incremental improvement, arXiv preprint arXiv,
1804.02767
Redmon J., Divvala S., Girshick R., Farhadi A., 2016, You only look once: Unified,
real-time object detection, Proceedings of the IEEE Conference on Computer Vision
and Pattern Recognition, pp. 779-788
Ren S., He K., Girshick R., Sun J., 2015, Faster r-cnn: Towards real-time object detection
with region proposal networks, arXiv preprint arXiv, 1506.01497
Russakovsky O., Deng J., Su H., Krause J., Satheesh S., Ma S., Huang Z., Karpathy
A., Khosla A., Bernstein M., 2015, Imagenet large scale visual recognition challenge,
International Journal of Computer Vision, Vol. 115, pp. 211-252
Salido J., Sánchez C., Ruiz-Santaquiteria J., Cristóbal G., Blanco S., Bueno G., 2020,
A low-cost automated digital microscopy platform for automatic identification of diatoms,
Applied Sciences, Vol. 10, pp. 6033
Sultana F., Sufian A., Dutta P., 2020, A review of object detection models based on
convolutional neural network, Intelligent Computing: Image Processing Based Applications,
pp. 1-16
Tian Y., Yang G., Wang Z., Wang H., Li E., Liang Z., 2019, Apple detection during
different growth stages in orchards using the improved YOLO-V3 model, Computers and
Electronics in Agriculture, Vol. 157, pp. 417-426
World Health Organization (WHO), 2004, Guidelines for drinking-water quality, World
Health Organization, Vol. 1
Zhao K., Ren X., 2019, Small aircraft detection in remote sensing images based on
YOLOv3, Proceedings of IOP Conference Series: Materials Science and Engineering, 012056
Zhao Z. Q., Zheng P., Xu S. T., Wu X., 2019, Object detection with deep learning:
A review, IEEE Transactions on Neural Networks and Learning Systems, Vol. 30, No.
11, pp. 3212-3232
