3.1. Deep Learning-based Graphic Feature Extraction Model Construction

Graphic fusion learning aims to deeply explore the shared semantic information and potential correlations between image modal data and textual modal data, and to generate high-quality feature representations or decision results for analysis with modal-specific information as supplementary information. Efficient analytical modeling of graphic fusion helps to better understand the current task scenario and make decisions accordingly. Graphic fusion strategies are categorized into hybrid fusion, decision-level fusion and feature-level fusion according to the fusion stage, and the specific framework is shown in Fig. 2.

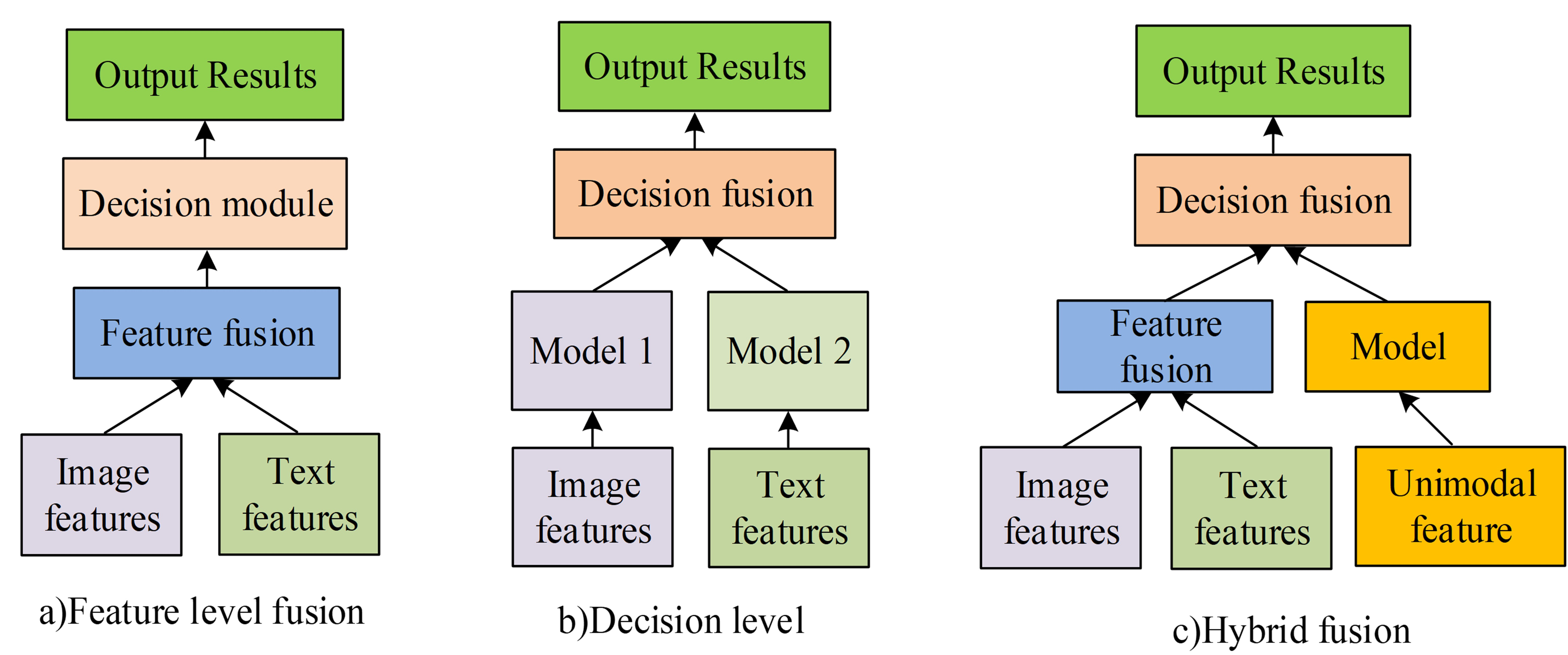

Fig. 2. Image and text fusion strategy diagram.

Among them, feature level fusion can better capture potential correlation relationships at the feature level, but it is prone to overfitting training data. Decision level fusion can effectively handle the asynchrony problem between heterogeneous data and better learn modality specific information, but it ignores the correlation between heterogeneous modality feature representations and is difficult to implement. Hybrid fusion combines the advantages of feature level fusion and decision level fusion. Therefore, this study adopts a hybrid fusion strategy, taking into account the overfitting problem of small sample datasets in feature level fusion, and drawing on the modal specific information preservation idea of decision level fusion for modeling. The Bert model, a deep bidirectional Transformer model, and its extended models have achieved state-of-the-art results in various natural language processing tasks. Therefore, this study adopts a pre trained Bert model for text feature extraction ^[18]. Eq. (1) shows how the concept of joint output, which combines the outputs of multiple hidden layers, is introduced in this study in order to fully utilize the features of the 12-layer coding network that makes up the Bert model, give it a more suitable basis for discrimination, and improve the model's robustness and generalization ability.

In Eq. (1), $L$ denotes the number of hidden layers in the Bert model. The extraction of features from the bottom, middle, and top layers of the Bert model is studied in order to be spliced as indicated by Eq. (2). This is because splicing the outputs of all hidden layers as a joint output would be too high dimensional.

In Eq. (2), $Hij$ is the output of the $ij$th hidden layer and $k$ is the hidden layers selected. For the extraction of image features, the DenseNet network is used in this study. DenseNet is a kind of DNN in which the output of each layer is not only passed to the next layer, but will also be directly passed to all the subsequent layers, which is characterized by dense connectivity, which enables a better flow of information, thus improving the effectiveness of the network ^[19]. The core structure of DenseNet is the dense block, and the output of the dense block is then compressed by a transition layer to reduce the channels in the output, thus reducing the model parameters and accelerating the model training, as shown in Eq. (3).

In Eq. (3), $H_l$ denotes the convolution operation of the first layer, $x_l$ denotes the output of the dense block, $f_l$ denotes the compression operation of the $l$th layer, and $x_{l-1}$ denotes the operation of the transition layer. In addition, this study constrains the sequence length of the output to be consistent with the text features by changing the last fully connected layer of the DenseNet network. Different modalities have different forms of features, and the feature fusion process is prone to the loss of single-peak information, so intra-modal enhancement of the features is required before feature fusion. Transformer is a powerful sequence model that has achieved great success in feature extraction and enhancement, but its required time and memory show a second-order increase in the length of the sequence ^[20]. For this reason, this study employs the gated attention unit (GAU), which combines a gated linear unit and an attention mechanism, to reduce the burden of self-attention in Transformer. The gated linear unit is shown in Eq. (4).

In Eq. (4), $X$ denotes the original input vector, $\varphi $ denotes the activation function, $W$ denotes the weight matrix, $\odot $ denotes the elemental multiplication, and $O$ denotes the output. Utilizing the attention and the gated linear unit as a single layer is the primary goal of the gated attention unit. And the calculation process of the gated attention is shown in Eq. (5).

In Eq. (5), $Z$ refers to shared representation, $Q$ and $K$ denote two cheap transformations, $b$ denotes relative positional bias, and $A$ denotes attentional weight. In this study, a self-encoder is used to fuse image features and text features, and the loss function of the feature fusion module is shown in Eq. (6).

The input and output text data are represented by $x_i$ and $\tilde{x}_l$ in Eq. (6), the number of modes are represented by $M$, and the input and output image data are represented by $y_i$ and $\tilde{y}_l$, respectively.

3.2. Cross-modal Hash Retrieval Model Building Based on Graphic Features

Once the image and text features are extracted, the study suggests a CMHR using multilevel adversarial attention, which consists of a modal attention module, a modal adversarial module, and an HL module, to further remove the heterogeneous differences between modalities and to supplement the fine-grained information of each modality. Channel attention mechanism can effectively weight and optimize the features of single mode to improve the representation ability of features. In cross modal hash retrieval, weighting the channel attention mechanism independently on image and text features can better preserve the unique information of each modality. Therefore, the study utilized channel attention mechanism in the modal attention module. The channel attention mechanism is intended to mimic human behavior in making decisions by using only a portion of the data. It does this by modeling different modal data according to their feature importance separately and assigning features to them based on their inputs. This mechanism is straightforward and efficient, and it includes two methods: maximum pooling and average pooling, which are used to gather modality features and the former to gather spatial information. Fig. 3 illustrates the specific operation of the channel attention mechanism.

Fig. 3. Working principle diagram of channel attention mechanism.

Eq. (7) shows the channel attention method for image modalities. The characteristics of text and image modalities are obtained, and the data are fed into the shared network to form a one-dimensional attention mapping.

In Eq. (7), $\rho $ denotes the sigmoid function, $F^{v} $ denotes the image features, $W$ denotes the weights, and $F_{avg}^{v} $ and $F_{\max }^{v} $ denote the average pooling and maximum pooling of the image, respectively. For the visual modality, Eq. (8) shows the pertinent and irrelevant information.

In Eq. (8), $F^{rv} $ denotes relevant information, $F^{irv} $ denotes irrelevant information, and $\otimes $ denotes multiplication of elements. Similarly, the one-dimensional text channel attention mapping is shown in Eq. (9).

In Eq. (9), $F^{t} $ denotes the image features and $F_{avg}^{t} $ and $F_{\max }^{t} $ denote the average and maximum pooling of the image, respectively. Eq. (10) shows the computation of pertinent and extraneous textual modality information.

Each modality has feature information that is both relevant and irrelevant, yet the modal attention module will receive information about clear feature association. The multilevel modal confrontation module, which includes intra-modal confrontation learning and inter-modal confrontation learning, is designed to communicate the correlation representation of each modality more effectively. Combining the generative model for data distribution and the discriminative model for determining sample source judgment results in the generative adversarial network. And the main role of the discriminative model is to judge whether the samples are from the samples or the real data ^[21]. Finally, the generated model is estimated by the generative adversarial model. Fig. 4 illustrates the specific functioning concept.

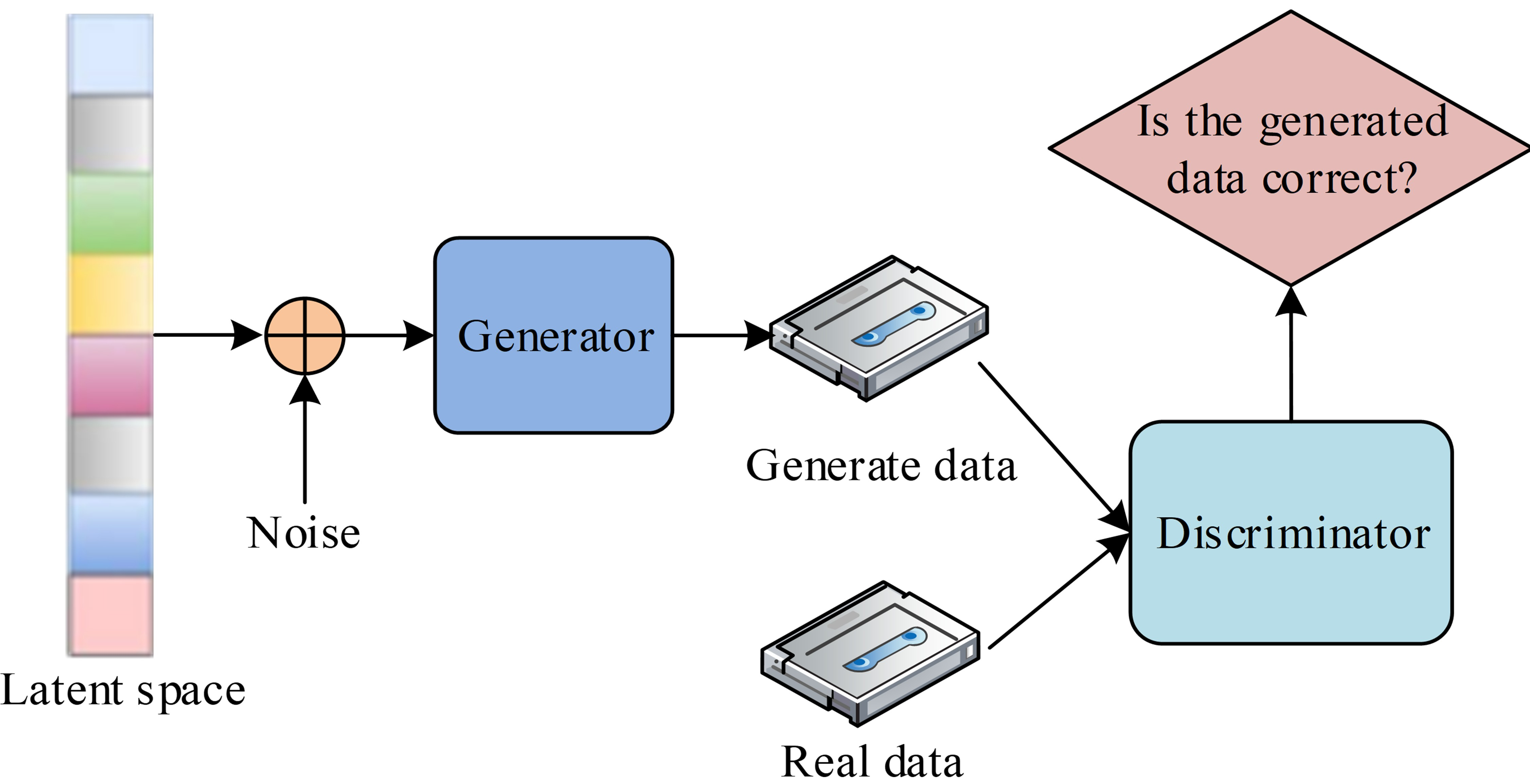

Fig. 4. Schematic diagram of generating adversarial networks.

Through intra-modal adversarial learning, each modality's important feature information can be enhanced by irrelevant background information, giving each modality a richer set of relevant data. A generator is an important component in generative adversarial networks (GANs) that receives random noise or other samples as input and learns to generate data samples that are as similar as real data samples as possible. Generators typically interact with discriminators during the training process of adversarial networks, with the goal of being as close to real data samples as possible to deceive the discriminators. The discriminator and generator learn in an adversarial manner, supplementing the relevant information of the modality with irrelevant background information. The objective functions of the discriminator and generator for adversarial learning within the image modality are shown in formula (11).

In Eq. (11), $\theta D$ denotes the parameters of the judger $D$, $f_{ri}^{v} $ and $f_{iri}^{v} $ denote the intra-modal relevant and irrelevant information of the $i$th image instance, $G_{r}^{v} $ and $G_{ir}^{v} $ denote the image relevant and irrelevant information generators, respectively, $\theta _{r}^{v} $ and $\theta _{ir}^{v} $ denote the parameters of the generator, and $v_i$ denotes the $i$th image. Since the two intra-modal adversarial learning is symmetric, the discriminator objective function and generator objective function for textual intra-modal adversarial are identical. The inter-modal adversarial learning discriminator objective function and generator objective function are shown in Eq. (12).

In summary, the modal confrontation module can cross the heterogeneity gap between modes, make the relevant feature information more tightly distributed, and improve the accuracy of CMR, with the objective function as shown in Eq. (13).

In Eq. (13), $\gamma $ denotes the hyperparameter. Hash function is a one-shot that converts a set into a fixed-length, irreducible set whose values are typically combinations of numbers and letters. The input is unbounded, but the size of the output needs to be specified at the time of output, and hence the probability of collision can be significantly reduced. Hash functions are characterized by avalanche effect, irreversibility, conflict avoidance and consistency. During the training process, each modality can learn HC together, so the objective function of HL is shown in Eq. (14).

In Eq. (14), $L_p$ denotes the pairwise loss function, $\varepsilon $ denotes the hyperparameters, $L_q$ denotes the quantization loss, $\Theta _{ij} =\frac{1}{2} h_{*i}^{t} h_{*j} $ and $B$ denotes the HC. When optimizing the loss function, the model is optimized iteratively by learning one parameter at a time and fixing the others. The GF-based CMHR model framework is shown in Fig. 5.

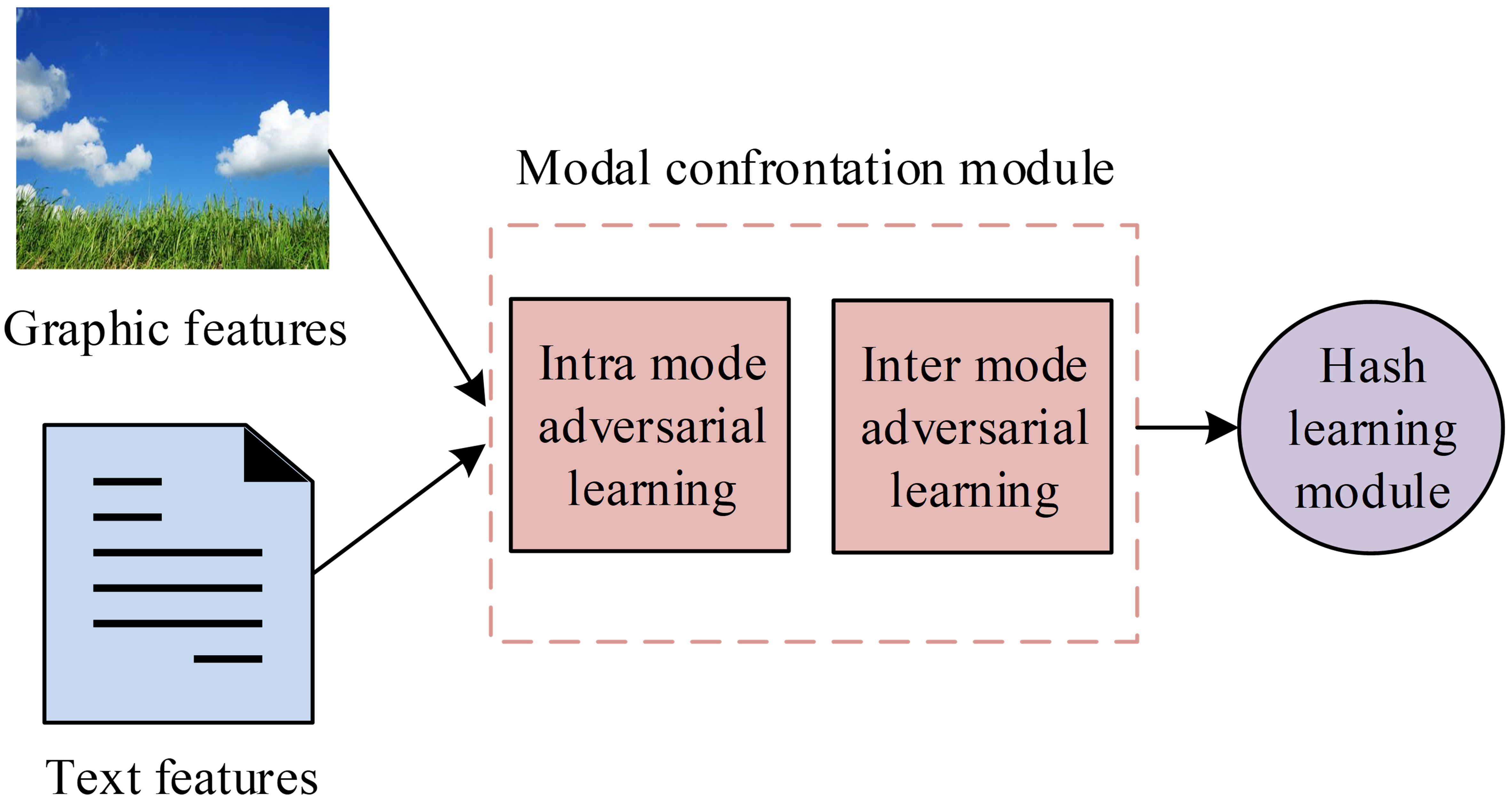

Fig. 5. Framework diagram of a cross modal hash retrieval model based on graphic and textual features.

4.1. Analysis of the Effectiveness of Graphic Feature Extraction Model Based on Deep Learning

The R@K indicator is the recall rate @K, which refers to the ratio of the number of relevant results retrieved from the first K search results to the number of relevant results in the database. It measures the recall rate of the retrieval system. The Flickr30K dataset is a corpus of image captions containing 31783 images, each with 5 different text annotations, and has become the standard benchmark for sentence based image descriptions. To validate the effectiveness of DL-based GFEM, the study uses the Flickr30K dataset and compares it with three state-of-the-art benchmark methods, namely, deep visual-semantic alignments (DVSA), learning two-branch neural networks (LTBN), and stacked cross attention network (SCAN), three state-of-the-art benchmark methods, and the comparison results of R@K metrics of the four methods are demonstrated in Table 1. With an average memory rate of 77.8%, the model suggested in this study outperforms the other four techniques in the recall index table. The SCAN model comes in second with an average recall rate of 77.5%. R@1 represents the accuracy of information matching and is the most demanding indicator for features. In this study, the R@1 for image retrieval was 56.4%, while the R@1 for text retrieval was 68.6%. The findings show that DL-based GFEM performs well in text and image feature extraction and has a significant impact on semantic recognition in images.

To verify the efficacy of DL-based GFEM, the study uses the NUS-WIDE-Object dataset and the Animal With Attributes dataset and compares them with four multimodal feature extraction methods, namely, Support vector machine (SVM), PCA-SVM, Localized Multiple Kernel Learning (LMKL) and MKL. Kernel Learning (LMKL) and MKL. The classification accuracies of the five methods are shown in Fig. 6. The suggested model in this study has a better classification accuracy (0.637 and 0.712, respectively) in this figure than the other four techniques in both datasets. Moreover, in Fig. 6(a), the classification accuracy of features using text modalities in the NUS-WIDE-Object dataset is higher than that of features using image modalities. On the other hand, PCA-SVM's classification accuracy is less accurate than SVM's. This is because PCA causes information loss, and typical feature extraction techniques cannot be used directly to multimodal data when there is a significant degree of modalities' difference. The outcomes demonstrate the high classification accuracy, certain viability, and effectiveness of the DL-based GFEM for multimodal data.

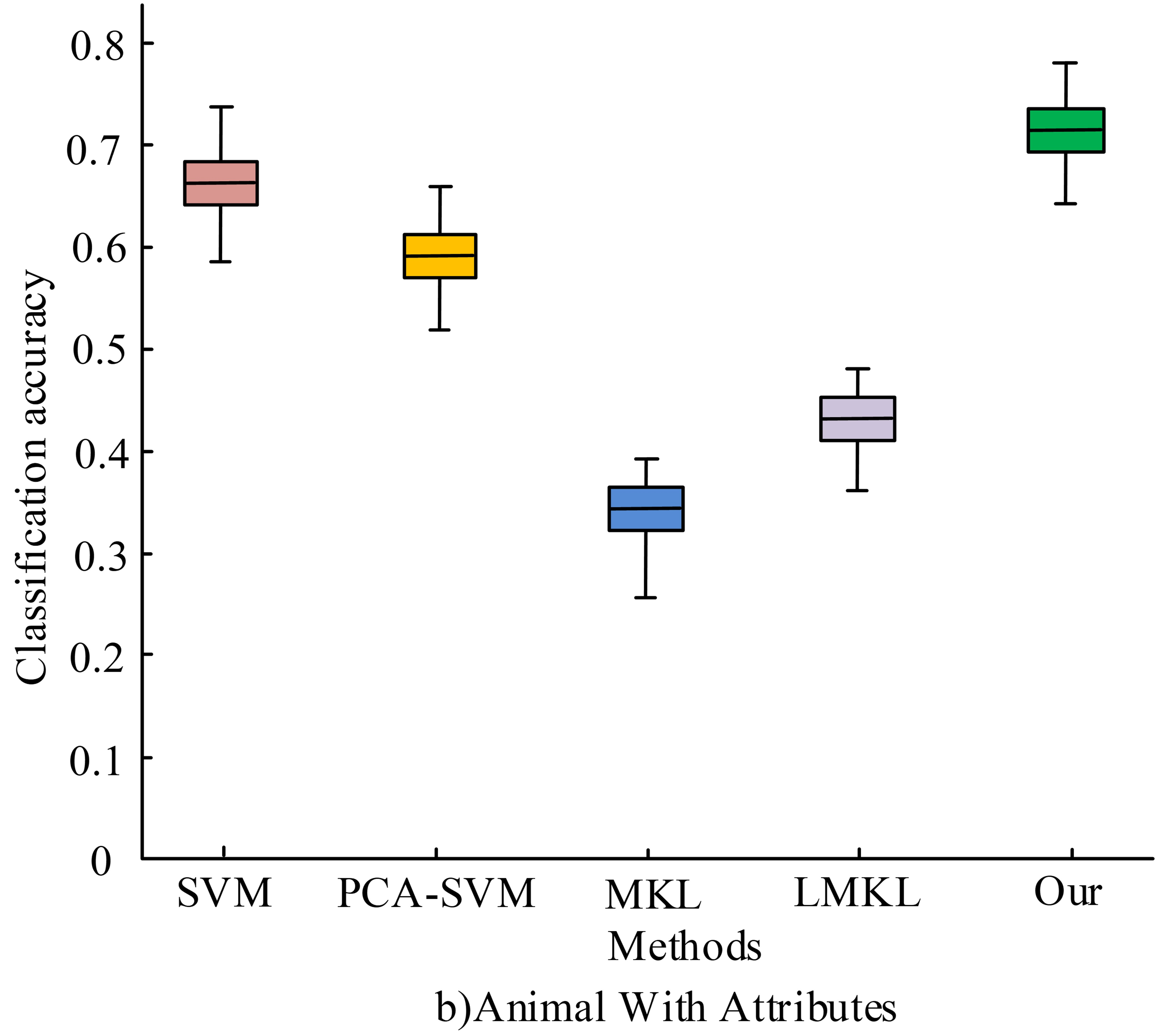

Fig. 6. Comparison results of classification accuracy of 5 methods.

In order to verify the effect of four modules, namely, image feature extraction module, multi-level text feature extraction module, modality-specific feature enhancement module and feature fusion module, on the model performance in DL-based GFEM, the study conducts ablation experiments. Using weighted F1 value, macro F1 value, and accuracy as indicators, Fig. 7 displays the ablation experiment's outcomes. All four modules have a greater impact on the feature extraction effect of the model, with the feature enhancement module having higher indicators than the other three modules, thus the feature enhancement module plays the biggest role.

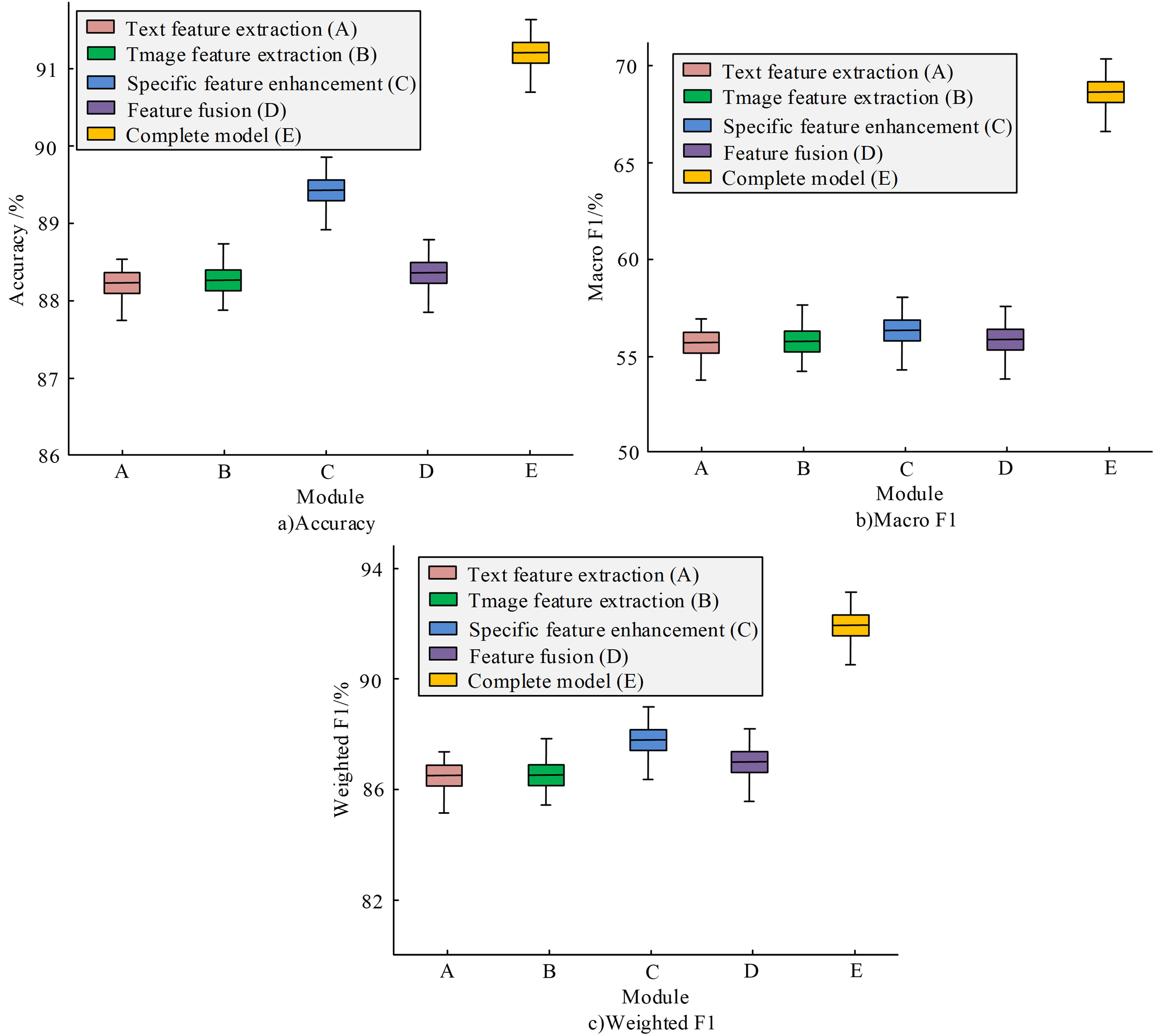

Fig. 7. Results of ablation experiment.

4.2. Effectiveness Analysis of Cross-modal Hash Retrieval Model Based on Graphic Features

To validate the effectiveness of GF-based CMHR model, the study uses MIRFlickr dataset and conducts experiments in pytorch framework by setting the initial learning rate to 0.0006, the batch size to 256, and the number of rounds to 100. the length of HC is set to 16, 32, and 64 bits, respectively. And with Collective reconstructive embeddings (CRE), Consistency-preserving adversarial hashing (CPAH), Fusion similarity hashing (FSH) and Deep multiscale fusion hashing (DMFH) are compared with the average precision mean of the four methods, and the comparison results are shown in Fig. 8. The suggested model in this study had the highest average accuracy mean across the four techniques in this figure for various HC lengths. And the average accuracy mean in the image retrieval text task is the largest when the HC length is 64 bits, which is 0.833, showing an excellent performance, with certain feasibility and superiority.

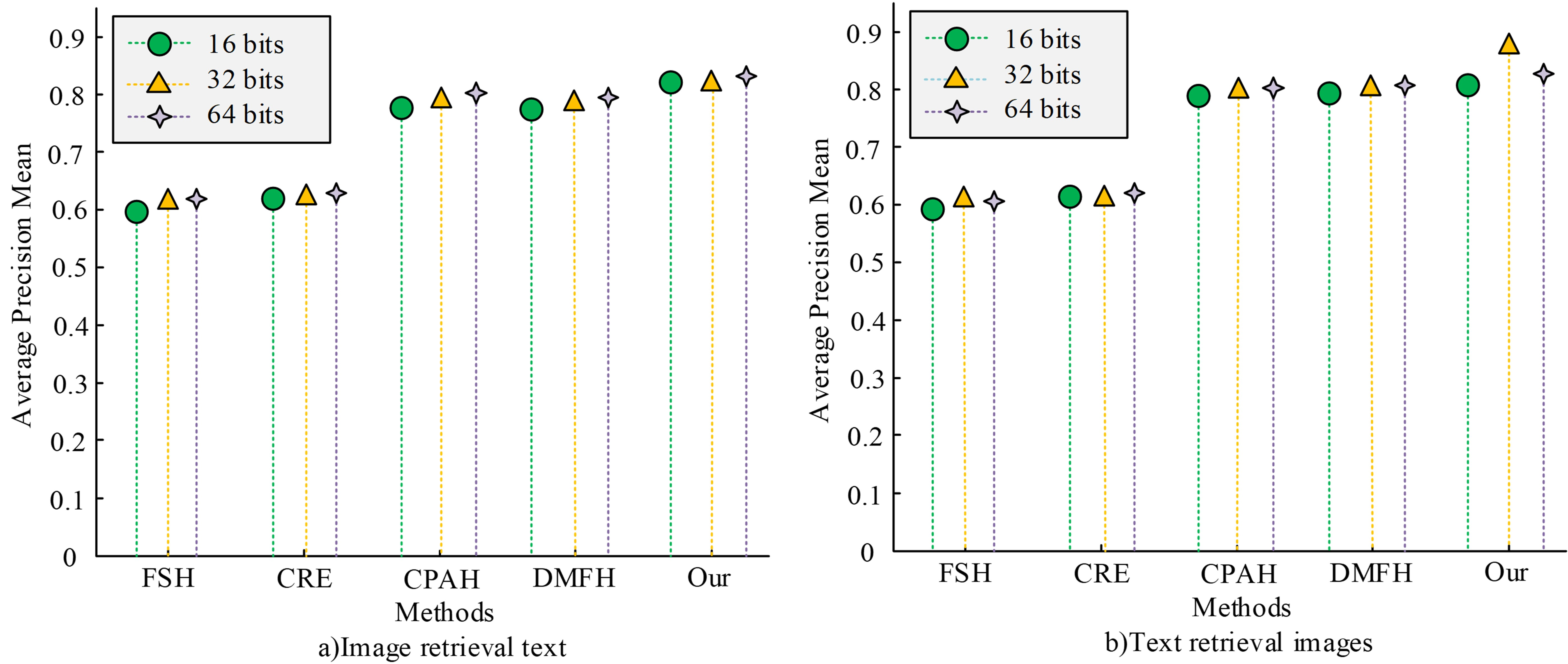

Fig. 8. Comparison results of average accuracy mean of four methods.

The study analyzes the precision-recall (P-R) curves of the aforementioned algorithms and sets the length of HC to 64 in attempt to further validate the efficacy of the GF-based CMHR model. The findings are displayed in Fig. 9. The suggested model in this study performs the best on the P-R curve, with the highest precision and recall, out of the four approaches shown in this figure. The outcomes demonstrate the effectiveness and superiority of the GF-based CMHR model by demonstrating greater retrieval accuracy performance.

To validate the effect of hyperparameters on the model performance, the study set the HC length to 64, changed the values of $\alpha $ and $\beta $ respectively, and the changes of the average accuracy mean of the model are shown in Fig. 10. In this figure, the optimal values of hyperparameters $\alpha $ and $\beta $ are both 0.1, indicating that both hyperparameters play an important role in CMHR.

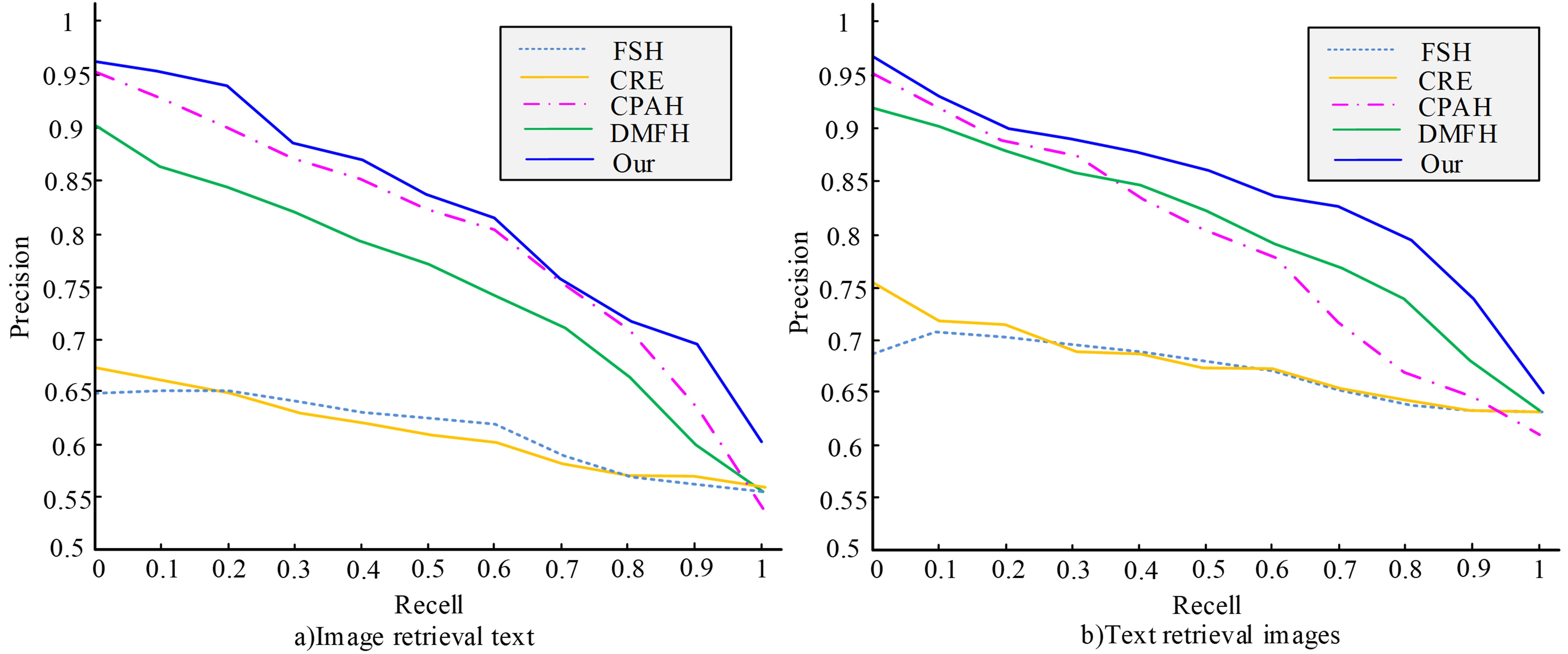

Fig. 9. Comparison results of P-R curves for 5 methods.

Fig. 10. The average accuracy mean change result of the model.

The study uses the WIKI dataset for ablation experiments to confirm the impact of various modules in the GF-based CMHR model on performance. The findings are displayed in Table 2. In the table, all the three modules, namely, attention mechanism, inter-modal confrontation and intra-modal confrontation, have a large impact on the model's graphic detection performance, in which the attention mechanism plays the largest role, followed by the inter-modal confrontation module.
